Meet Skid-Lift.
Welcome to the future of how you use your skidsteer.
Skid-Lift pairs the advantages of a scissor lift with the flexibility of a skid steer or tractor. It will easily fit on the front of a trailer for transportation along with the skid steer. The Skid-Lift has a quick attach plate on the end or as a side attachment option (see pictures below). The auxiliary hydraulic system on your skid steer provides the power for the lift and tilt.

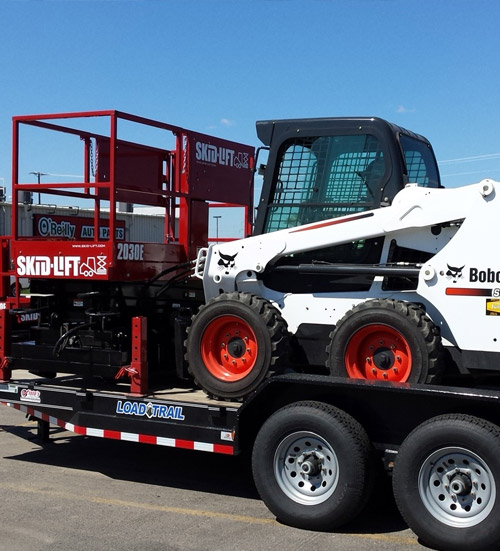

The Skid-Lift is designed for easy transport and will easily fit on the front of a skid steer trailer for transportation along with your skid steer. An optional attach plate can be obtained when hooking to a 3-point hitch on a tractor.
Model 1505S
21’ Working Height (15’ Platform Height), 5’ x 30” Wide Deck, End and Side Access Doors, One Side Attach Plate, Weight 1500 lbs
Model 1805S
24’ Working Height (18’ Platform Height), 5’ x 30” Wide Deck, End and Side Access Doors, One Side Attach Plate, Weight 1820 lbs
Model 2306S
29’ Working Height (23’ Platform Height), 6’ x 30” Wide Deck, End and Side Access Doors, One Side Attach Plate, Weight 2050 lbs
Model 1908E HD
25’ Working Height (18.8’ Platform Height), Includes 4 Degree Side Tilt feature, 6’2″ x 34” Platform w/ 22” deck extension (8’ total deck length), End and Side Attach Plates included, Hydraulic Hook-Up Couplers at Both Attach Plates, End and Side Access Doors, Weight 2400 lbs, Lift Capacity Rating: 1,000 lbs on Main Deck, 500 lbs on Deck Extension
Advantages over standard/existing Scissor Lifts
- Using a Skid-Steer that may already be available to move and power the unit saves you money and resources
- The ability to work or move over uneven terrain
- Works on any kind of surface
- Very low maintenance as you use the motor and hydraulics already available on a Skid-Steer
- Able to be attached to skid steer with a quick attach plate or farm tractor with a 3-point mount
- Eliminates expensive components, such as pumps, hydraulic drive motors, wheels, batteries used on other units
- Easily stored in the off-season without worrying about components sitting outside (batteries, hydraulic pumps, electronics, etc.)
- Unit has a low cost of ownership compared to other similar devices on the market today
Compact Design
Standard Fork Lift Pockets
Basket Upper Controls
Quick Attach
Applications:
- Roofing
- Eves and Gutter installation
- Siding
- Signage
- Construction
- General maintenance
- Overhead work
- Tree Trimming
- Hotel and Apartment Window Washing
- Power Line Work
- Plant Maintenance
- Overhead Observation Post
- Overhead Photography and Video
- Warehouses
Highlights:
- Safety
- All-Terrain
- Low initial cost
- Configurable
- Ease of Use
- Rugged steel construction
- Virtually maintenance free
- Heavy weight capacity
- Large overall foot print
- Spacious Deck
Features:
- Hydraulic controls
- Manual extension platform
- Overriding ground control
- Safety Case Drain Tank if Skidsteer not equipped
- Safety Release at base and basket if needed
- Velocity Brake in-line for Maximum Protection
- Tilt deck ± 4° (1908E HD)
S Models

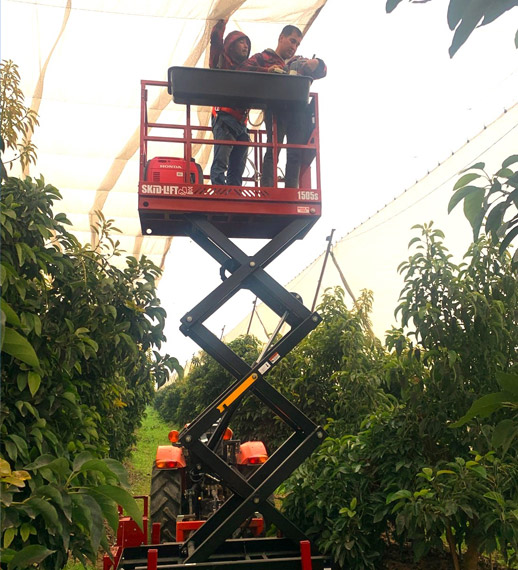

Model 1505S
- 21′ Working Height
- 15′ Platform Height
- Weight 1500 lbs
Model 1805S
- 24′ Working Height
- 18′ Platform Height
- Weight 1820 lbs
Model 2306S
- 29′ Working Height
- 23′ Platform Height
- Weight 2050 lbs

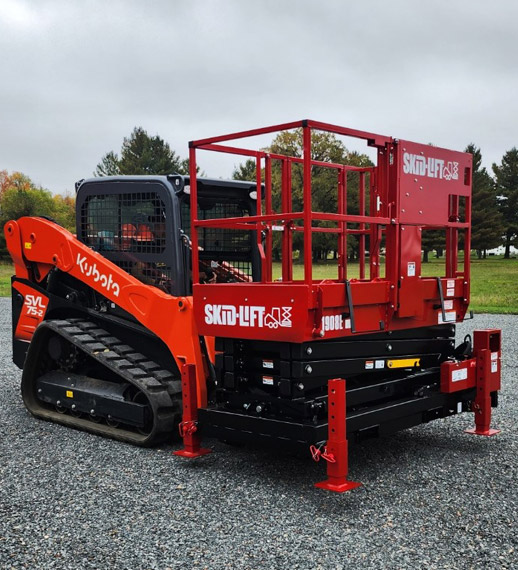

Model 1908E HD
- 25′ Working Height
- 18.8′ Platform Height
- 6’2″ x 34” Platform with 22” deck extension (8′ Total Length)
- Weight 2400 lbs
- Includes 4° Side Tilt feature
- End and Side Attach Plates included
- Hydraulic Hook-Up Couplers at Both Attach Plates
- End and Side Access Doors
- 1,000 lbs on the Main Deck, 500 lbs on the Deck Extension
- Heavy Duty Tube Steel Base Frame Construction
