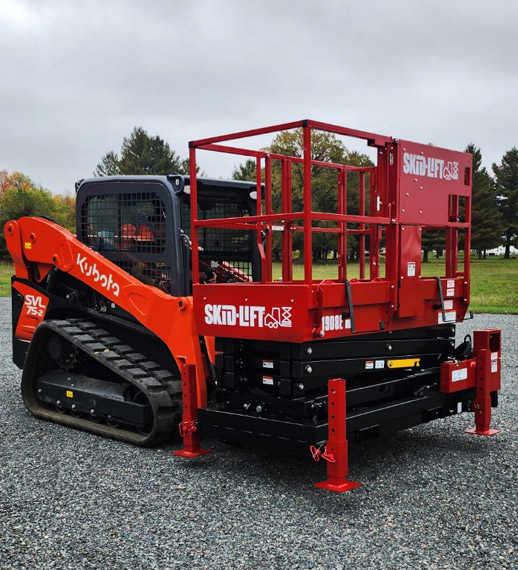

1908E HD Model
Our heaviest duty model.
The Skid-Lift was developed to pair the advantages of a scissor lift with the flexibility of a skid steer or tractor. The auxiliary hydraulic system on your skid steer provides the power for the lift and tilt. The 1908E HD model has a built-in quick attach plate on the end of the lift along with a side attach plate that bolts on and is included as standard equipment. This gives added versatility when getting into tight spots or positioning of the basket in relation to the work you are doing. The side tilt functionality allows for 4 degrees of tilt of the basket both forward and back which allows you to either level out your basket as needed or get closer or farther from your work area as needed.
The Skid-Lift is designed for easy transport and will easily fit on the front of a skid steer trailer for transportation along with your skid steer. An optional attach plate can be obtained when hooking to a 3-point hitch on a tractor.
The support legs are adjustable for uneven terrain. The unit will also work with many fork lifts that have external hydraulic hooks. Tractors can also be hooked up to the Skid-Lift with the use of the optional 3 point hitch adaptor plate.
1908E HD
$21,900
Lift Height: 25’ Working Height (18.8’ Platform Height)
6’2″ x 34” Platform with 22” deck extension (8′ Total Length)
Weight: 2400 lbs
Lift Capacity Rating: 1,000 lbs on Main Deck, 500 lbs on Deck Extension
Includes 4° Side Tilt feature
End and Side Attach Plates included
Hydraulic Hook-Up Couplers at Both Attach Plates
End and Side Access Doors
Heavy Duty Tube Steel Base Frame Construction
Videos
The video above was taken using an older 2030E HD model.
The 4° side tilt feature works the same on the new 1908E HD model.
Advantages over standard/existing Scissor Lifts
- Using a Skid-Steer that may already be available to move and power the unit saves you money and resources
- The ability to work or move over uneven terrain
- Works on any kind of surface
- Very low maintenance as you use the motor and hydraulics already available on a Skid-Steer
- Able to be attached to skid steer with a quick attach plate or farm tractor with a 3-point mount
- Eliminates expensive components, such as pumps, hydraulic drive motors, wheels, batteries used on other units
- Easily stored in the off-season without worrying about components sitting outside (batteries, hydraulic pumps, electronics, etc.)
- Unit has a low cost of ownership compared to other similar devices on the market today
Compact Design
Standard Fork Lift Pockets
Basket Upper Controls
Quick Attach
Applications:
- Roofing
- Eves and Gutter installation
- Siding
- Signage
- Construction
- General maintenance
- Overhead work
- Tree Trimming
- Hotel and Apartment Window Washing
- Power Line Work
- Plant Maintenance
- Overhead Observation Post
- Overhead Photography and Video
- Warehouses
Highlights:
- Safety
- All-Terrain
- Low initial cost
- Configurable
- Ease of Use
- Rugged steel construction
- Virtually maintenance free
- Heavy weight capacity
- Large overall foot print
- Spacious Deck
Features:
- Hydraulic controls
- Manual extension platform
- Overriding ground control
- Safety Case Drain Tank if Skidsteer not equipped
- Safety Release at base and basket if needed
- Velocity Brake in-line for Maximum Protection
- Tilt deck ± 4° (1908E HD)
Specifications:
Model 1908E HD
- 25′ Working Height
- 18.8′ Platform Height
- 6’2″ x 34” Platform with 22” deck extension (8′ Total Length)
- Weight 2400 lbs
- Includes 4° Side Tilt feature
- End and Side Attach Plates included
- Hydraulic Hook-Up Couplers at Both Attach Plates
- End and Side Access Doors
- 1,000 lbs on the Main Deck, 500 lbs on the Deck Extension
- Heavy Duty Tube Steel Base Frame Construction
